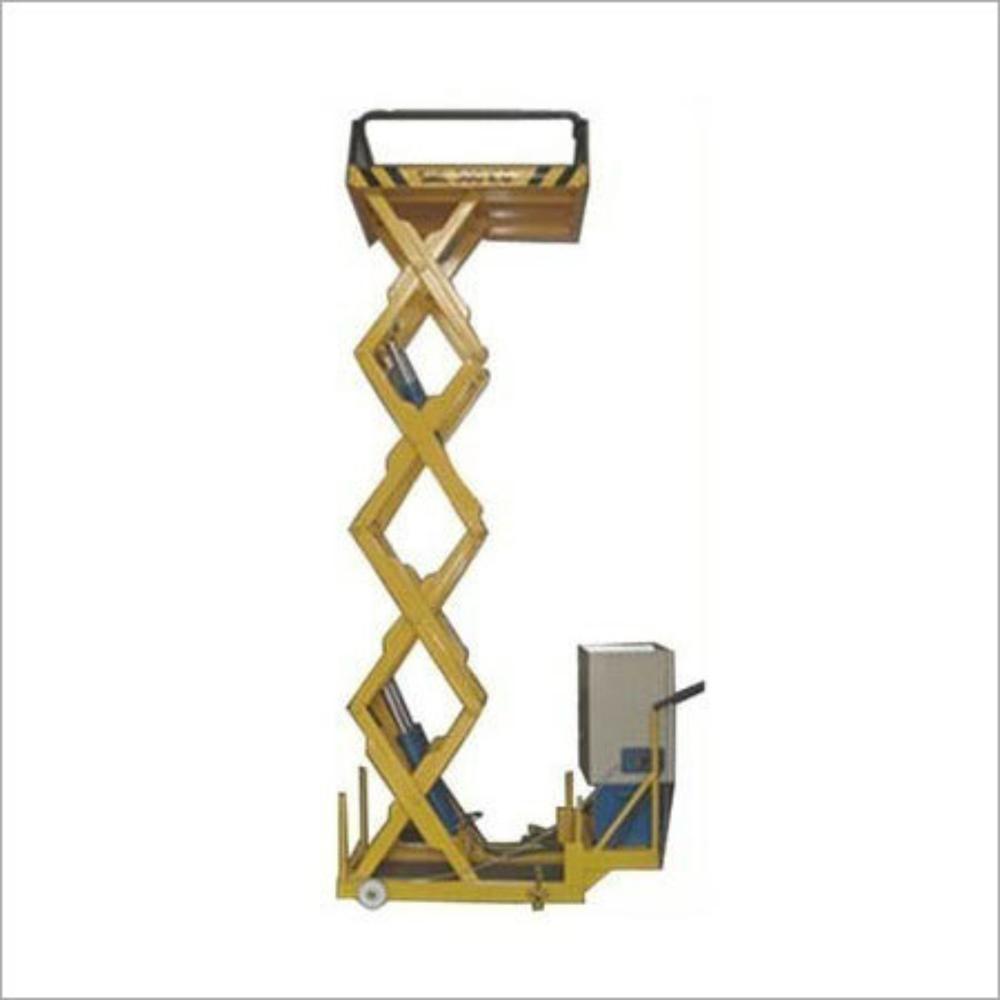

Working Platform Scissor Lift

Name: Working Platform Scissor Lift
Brand: V.S. INDUSTRIES
Price: 25000.0 INR
Availability: InStock

Price 25000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Working Platform Scissor Lift Specification

Voltage
220V/380V (customizable)

Overhead Height
1500 mm

Load Capacity
500 kg

Door Opening Size
Customizable

Inclination
0 (Vertical)

Pit Depth
200 mm

Noise Level
70 dB

Car Dimension
2000 mm x 1000 mm (customizable)

Type
Scissor Lift Platform

Hoist Way Size
Customizable

Usage
Material Handling, Maintenance, Warehouse Operations

Material
Mild Steel/Aluminum Alloy

Drive Type
Hydraulic

Power Supply
Electric

Speed
3-6 m/min

Max. Lifting Height
10 m

Max. Lifting Weight
500 kg

Mechanism Type
Hydraulic Scissor Mechanism

Working Temperature
-10C to +40C

Control Device
Push Button/Remote Control

Safety Device
Emergency Stop, Safety Lock Valve, Overload Protection

Capacity
500 kg

Power
2.2 kW

Protection Grade
IP54

Platform Height (Lowered)
1200 mm

Color
Yellow or Custom

Control Voltage
24V DC

Application
Indoor/Outdoor

Frequency
50 Hz / 60 Hz

Platform Height (Extended)
10,000 mm

Installation
Free Standing / Fixable Base

Platform Surface
Anti-Skid Checkered Plate

Mobility
Stationary/Mobile Available

Safety Rails
Detachable/Fixed

Wheel Type
Heavy Duty Nylon/PU Wheels

Hydraulic Oil Type
46# anti-wear hydraulic oil

Emergency Lowering System
Provided

Operating Mode
Manual/Electric Control

Lifting Mechanism
Double/Triple Scissor

Working Platform Scissor Lift Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
50 Units Per Month

Delivery Time
1 Week

About Working Platform Scissor Lift

Here are some working platform scissor lift options you might consider these are industrial lifts with a platform that raises people and materials vertically for maintenance, installation, warehouse, construction, and other elevated tasks:

Safety and Performance Combined

This scissor lift is engineered with multiple safety features, including emergency stop, safety lock valve, overload protection, and a reliable emergency lowering system. The IP54 protection grade ensures durability, while the hydraulic drive and double/triple scissor mechanism provide smooth and precise elevation up to 10 meters. It operates silently (under 70 dB), supports customizable capacities, and is suitable for varied temperatures from -10C to +40C.

Flexible Installation and Operation

Our platform can be installed as a free-standing unit or with a fixable base, and is available in both stationary and mobile versions. With customizable dimensions, power supply options (220V/380V), and control modes (manual or electric, push button or remote), it adapts seamlessly to your workspace and workflow. The anti-skid surface and heavy-duty wheels promote safety and ease of movement during use.

FAQ's of Working Platform Scissor Lift:

Q: How is the Working Platform Scissor Lift operated and controlled?

A: The lift can be operated via manual or electric controls, utilizing either a push-button control panel or a wireless remote. The control voltage is 24V DC, offering smooth operation and quick response. Both stationary and mobile options are available, ensuring adaptability to various work environments.

Q: What safety features are incorporated in this scissor lift?

A: Integrated safety mechanisms include an emergency stop button, safety lock valve, overload protection system, detachable or fixed safety rails, and an emergency lowering system. These features ensure operators remain safe during use and that the platform maintains stable operation even under challenging conditions.

Q: Where can this scissor lift be installed and what applications does it support?

A: The lift is designed for indoor and outdoor usage and is suitable for material handling, maintenance, warehouse operations, and more. It can be installed as a free-standing unit or with a fixable base, and accommodates various customized dimensions to fit specific site requirements.

Q: What is the lifting capacity and maximum height of the platform?

A: The platform can safely lift up to 500 kg and reaches a maximum extended height of 10,000 mm (10 meters). The lowered platform height is 1,200 mm, making it versatile for both low and high access requirements within your facility.

Q: How does the installation process work and are customizations available?

A: Installation is straightforward, suitable for both new and existing facilities, and the lift can be customized in terms of car dimensions, door size, voltage, color, and hoist way. Our team provides guidance for setup, ensuring the platform fits your unique operational needs.

Q: What type of hydraulic oil is recommended and how is maintenance conducted?

A: It is recommended to use 46# anti-wear hydraulic oil for optimal performance. Regular maintenance includes checking the hydraulic system, inspecting all safety devices, and ensuring the anti-skid platform is clean and undamaged. Detailed maintenance procedures are provided in the user manual.
